Asbestos Packing with Graphite Impregnation

Buy high quality Asbestos Packing with Graphite Impregnation from us, the China leading supplier and manufacturer in good priceKeywords:Asbestos Packing with Graphite Impregnation, China, Manufacturers, Suppliers, Factory, Wholesale

Product Description

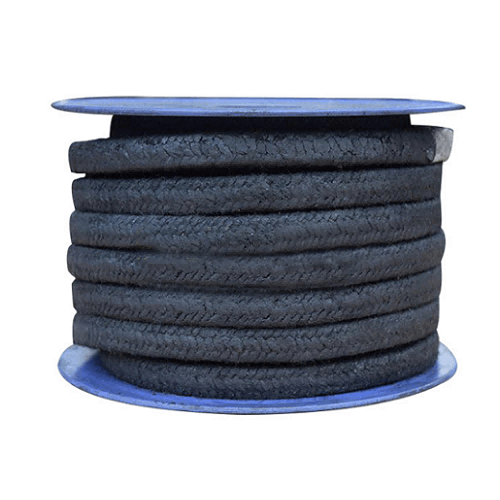

Asbestos Packing with Graphite Impregnation - Style 735

Asbestos packing with graphite impregnation is braided with asbestos thread yarn and impregnated with lubricating oil and surface coated graphite. It is suitable for rotary shafts, reciprocating pistons or valve rods as sealing materials. According to the requirements of working conditions, it can produce asbestos packing with steel wire (nickel wire, SS304 or SS316 stainless steel wire) and lead powder impregnated with lead powder. According to customer requirements, it can be molded into oil-impregnated asbestos graphite packing rings.

Applicable medium:

The medium is steam, air, industrial water, and heavy petroleum products.

Industry:

Asbestos packing with graphite impregnation is widely used in general industries such as petroleum, chemical industry, mechanical equipment, shipbuilding, etc.

Data Sheet

Temperature	-	Pressure Limit	-
Min Temp	- 100 °C	Static	20 bar
Max Temp	280 °C	Rotating	5 bar
Density	1.2 g/cm3	Reciprocating	10 bar
Rotary Pump Speed	6 m/s	Ph Value	4 - 10
