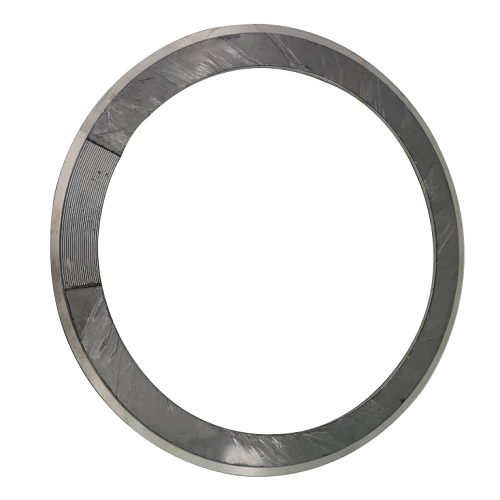

Style Kam 321 - Kammprofile Gasket with Loose Outer Ring
We have been a top provider of top quality kammprofile gasket with
loose outer ring, the gasket includes a grooved steel core serrated on
both sides as well as covered with a soft filler that is definitely
bonded to each and every sealing face, and this form kammprofile gasket
was developed with a loose matching outer guide ring. Flexible graphite
and expanded PTFE sealing layers are generally most usual, yet other
soft materials can be used properly. Though offering the Kammprofile
gasket with loose outer ring with fantastic sealing properties, the
actual very soft sealing layers also fill in slight flange imperfections
and safeguard the flange areas from destruction. The kammprofile
gaskets are ideal for both conventional water pipe and also heat
exchanger programs.
According to the different constructions, Kammprofile gasket (Also
known as Camprofile gasket) is usually offered in 3 styles as below:
Style Kam 320- Basic Kammprofile Gasket (Without outer ring)
Style Kam 321- Kammprofile Gasket with Loose Outer Ring (The outer ring is floating)
Style Kam 322- Kammprofile Gasket with Integral Outer Ring (The outer ring is fixed)
Application:
kammprofile gasket with loose outer ring is the recommended choice for
programs requiring advanced efficiency at small seating stresses. The
particular serrated steel pieces supply lowered contact area and when
combined with soft conformable sealing layers, thus it can provide a
virtual metal to metal relationship. The gasket attribute excellent
potential to deal with blowout and supply outstanding stability for
simple handling and installation.
Advantages
•
The Kammprofile gasket features remarkable sealing properties at a
extensive range of seating levels of stress and it can aid compensate
for large swings in temperature and pressure.
• The Kammprofile gasket
owns very forgiving of irregular bolt torqueing or assembly error and it
is applied to almost all kinds of flanges whatever bolt load readily
available.
• The gasket cores are reusable consequently it is effective in reducing charge and reduce gasket fingertips troubles.
• Gives severe temperatures and chemical amount of resistance because of the range of materials offered.
• Very low seating pressures needed and help to lower flange damage and gasket extraction issues.
• The working thickness of sealing layers is extremely little and cut down fugitive emissions.
• It is still easily sealed when performing at very high pressure.
Kammprofile Gasket Core Materials
|
Core Materials
|
Max Temp. (°C)
|
Core Materials
|
Max Temp. (°C)
|
Core Thickness
|
|
SS 304
|
550
|
Inconel 625
|
450
|
2mm, 3mm, 4mm
|
|
SS 316L
|
550
|
Incoloy 825
|
450
|
|
Monel 400
|
600
|
Hastelloy B-2
|
450
|
|
Nickel 200
|
600
|
Hastelloy C 276
|
450
|
|
Inconel 600
|
900
|
Titanium
|
350
|
Total Thickness
3.5mm, 4.0mm, 4.5mm, 5.0mm
Kammpfofile Gasket Layer Materials
|
Layer Material
|
Min Temp. (°C)
|
Max Temp. (°C)
|
Gas Tightness
|
Application
|
|
Flexible Graphite
|
-196
|
600
|
Excellent
|
Aggressive Media
|
|
PTFE
|
-260
|
260
|
|
EPTFE
|
-260
|
315
|
|
Non-asbestos
|
-100
|
250
|
|
Silver
|
-200
|
750
|
Kammprofile Gasket M and Y Factors
Gasket Factor “m” = 4.0
Gasket
Factor “y” = 1,000 PSI (NOTE: When designing flanges, we recommends
using a "y" of 4,000 PSI to ensure the flange design is thick enough to
avoid excessive deformation when assembled and heated.)

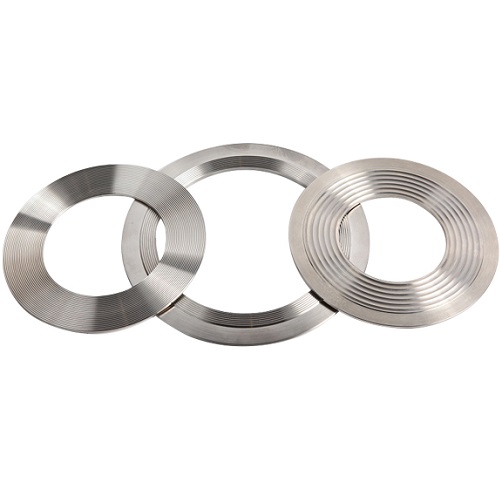

Basic Kammprofile Serrated Gasket

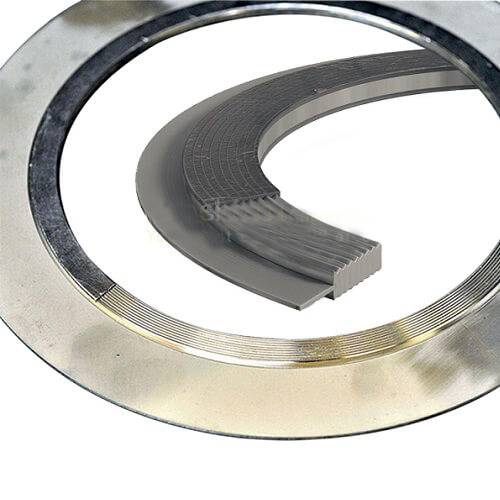

Kammprofile Grooved Gasket with Integral Outer Ring
