Phenolic Resin with Fabric Wear Strip

Phenolic Resin with Fabric Wear Strip is designed to provide an extremely effective, hard wearing, and easy-to-use bearing solution for reciprocating, oscillating.Keywords:Phenolic Resin with Fabric Wear Strip, China, Manufacturers, Suppliers, Factory, Wholesale

Product Description

Phenolic Resin with Fabric Wear Strip - T400

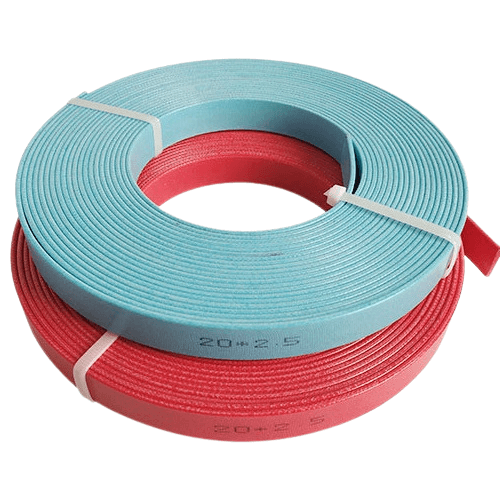

Phenolic resin with fabric wear strip is made of phenolic resion bonded with cotton fabric or polyester fabric, and it is designed to be extremely robust and carry very heavy sideloads up to 270 M/mm. Phenolic resin with fabric wear strip also offers very good thermal stability and low water absorbtion. The cotton fabric is typically used in diameters below 300mm, and polyester fabric reinforcd phenolic resin wear strip tape is more commonly used for larger sizes and may be supplied in strip form. And our phenolic resin with fabric wear strips are supplied with chamfers on all sides to allow for better fit and service life.

Main Features of Phenolic Resin with Fabric Wear Strip

Diameter Range: Rolls up to length 5500.00 mm, rings up to Ø 500.00mm.
Materials: Cotton fabric or polyester fabric reinforced phenolic resin.
Temperature: -40ºC to 120ºC.
Radial Load Strength (N/mm²): 270 N/mm² (Ultimate)
120 N/mm² at 25 Deg C
60 N/mm² at 60 Deg C

Fluids: Hydraulic fluids (Mineral Oil based )

Advantages of Phenolic Resin with Fabric Wear Strip

Phenolic resin with fabric wear strip has very good wear resistance and long life, it avoids contact between metals. It has low compression deformation and vibration absorbing. Phenolic resin with fabric wear strip has minimal water absorption, and the groove is simple and easy to install, low maintenance cost.

Typical properties of Phenolic Resin with Fabric Wear Strip

Properties	Test Methods	Typical Value	Test Unit
Specific Gravity	ASTM D792	1.35	g/cm3
Hardness	ASTM D785	79	Rockwell E
Tensile Strength	ASTM D638	65	Mpa
Tensile Modulus	DIN D638	470	Kpsi
Compressive Strength	ASTM D695	35000	Psi
Flexural Modulus	ASTM D790	280	Kpsi
Water Absorption	ASTM D570	0.1	%
Working temperature	-	-40 to 120	°C
